Euroster 4020TXRX

‹ › ×

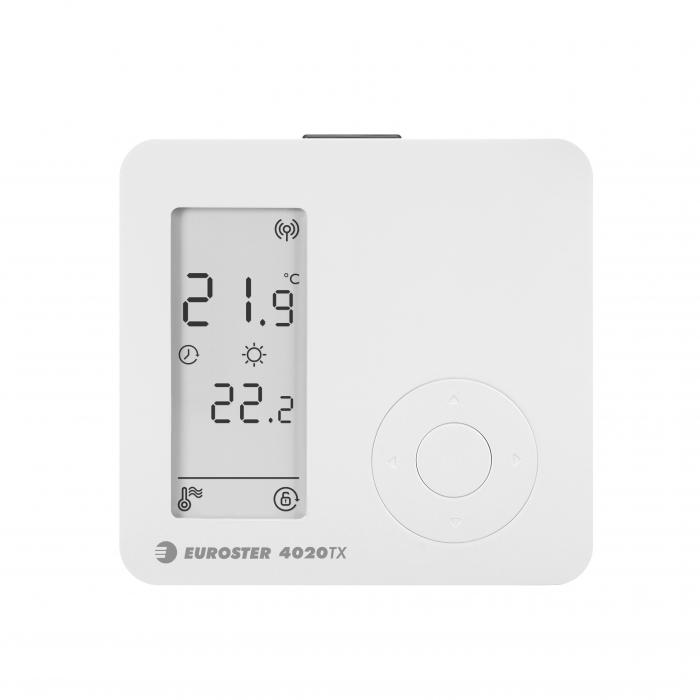

Euroster 4020TXRX multifunctional temperature controller

New Euroster 4020TXRX temperature controllers with a large backlit display and programmable time-based reduction of the comfort temperature control the operation of the heat source. Thanks to the ability to work with two temperature sensors and the PWM function, they work optimally with underfloor heating systems.

Benefits

Technical specification

Documentation

Minimalist design, reliability, and safety are the key advantages of the new Euroster 4020TX temperature controller. The large backlit display shows two temperatures: the set temperature and the current temperature. The controller effectively stabilizes the room temperature at the desired level, ensuring user comfort and real energy savings. A range of useful additional functions enhances the attractiveness and versatility of the controller, making it suitable for both households and public utility spaces. The controller also features a function that limits temperature adjustments by unauthorized users.

Receivers

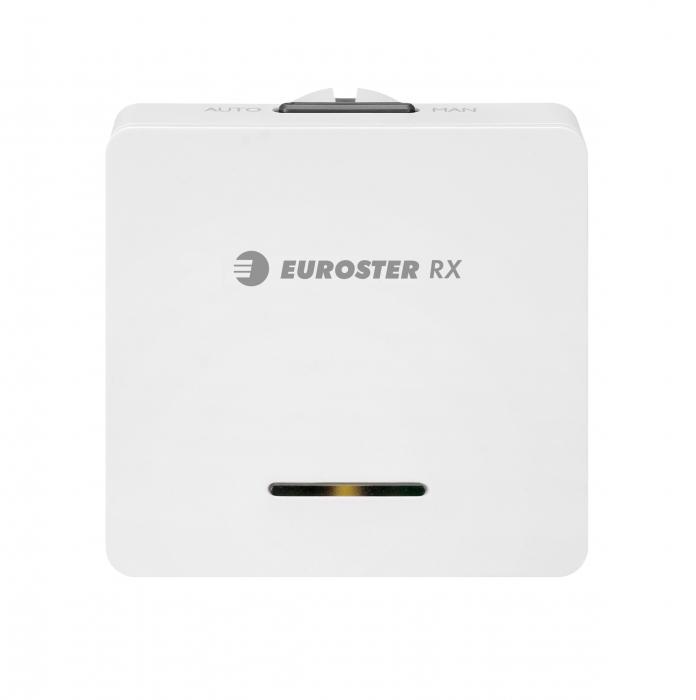

The wireless controller is supplied as standard with an RX receiver. Optionally, 3 other receivers are also available, depending on requirements and installation conditions.

default receiver

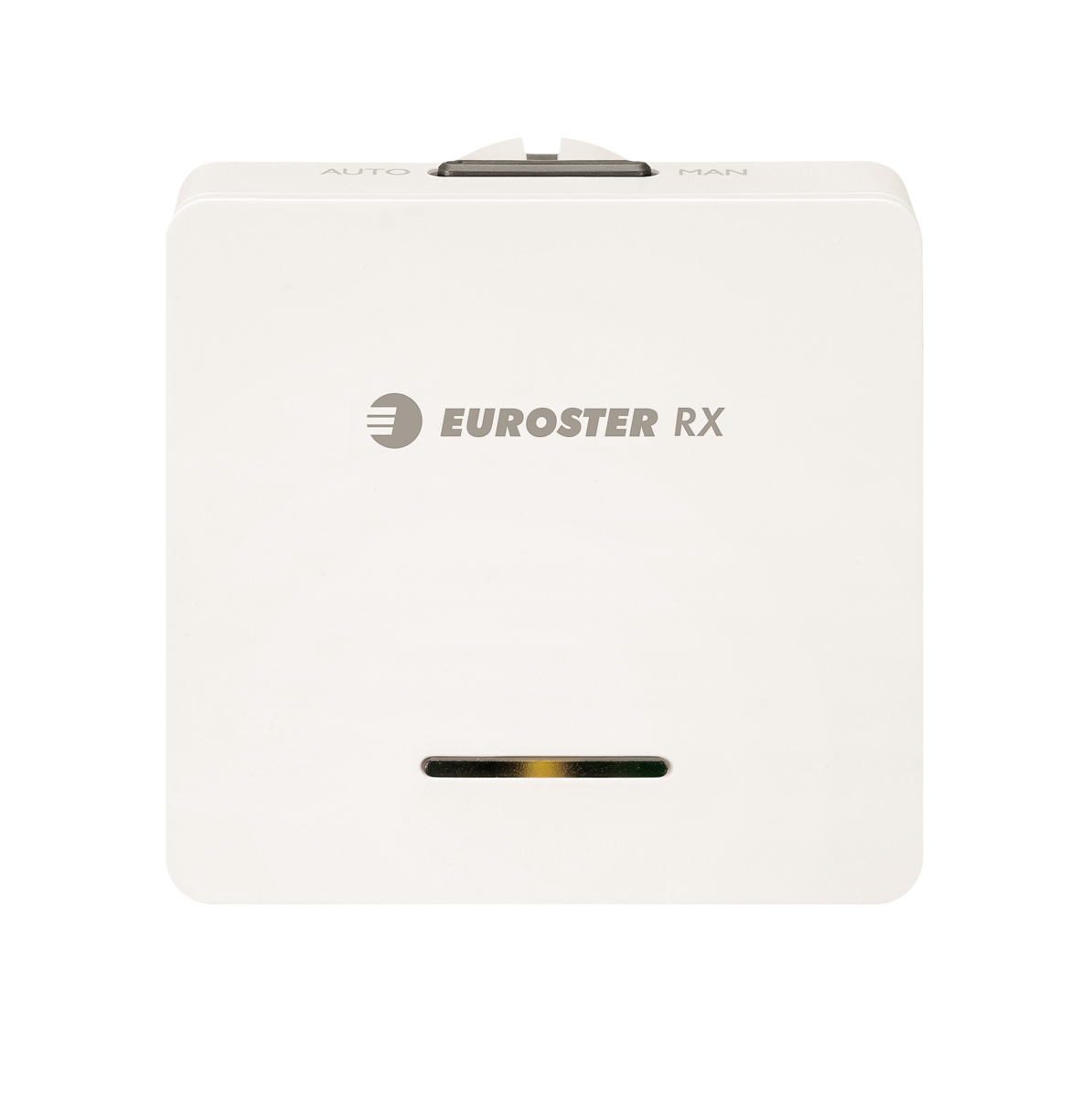

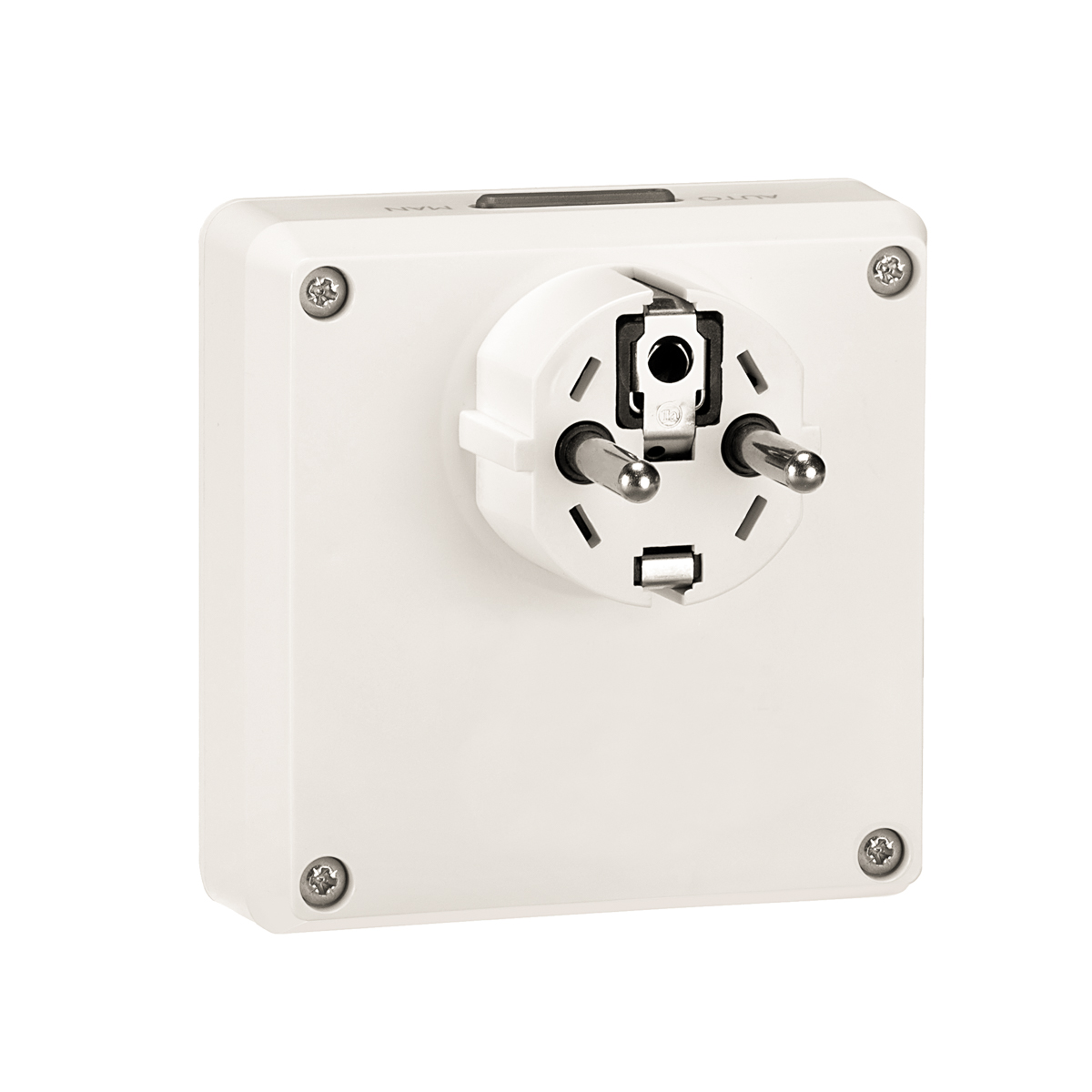

RX receiver with a volt-free controlled output 5(3)A, installation in a 230V electrical socket

optional receiver

RXN

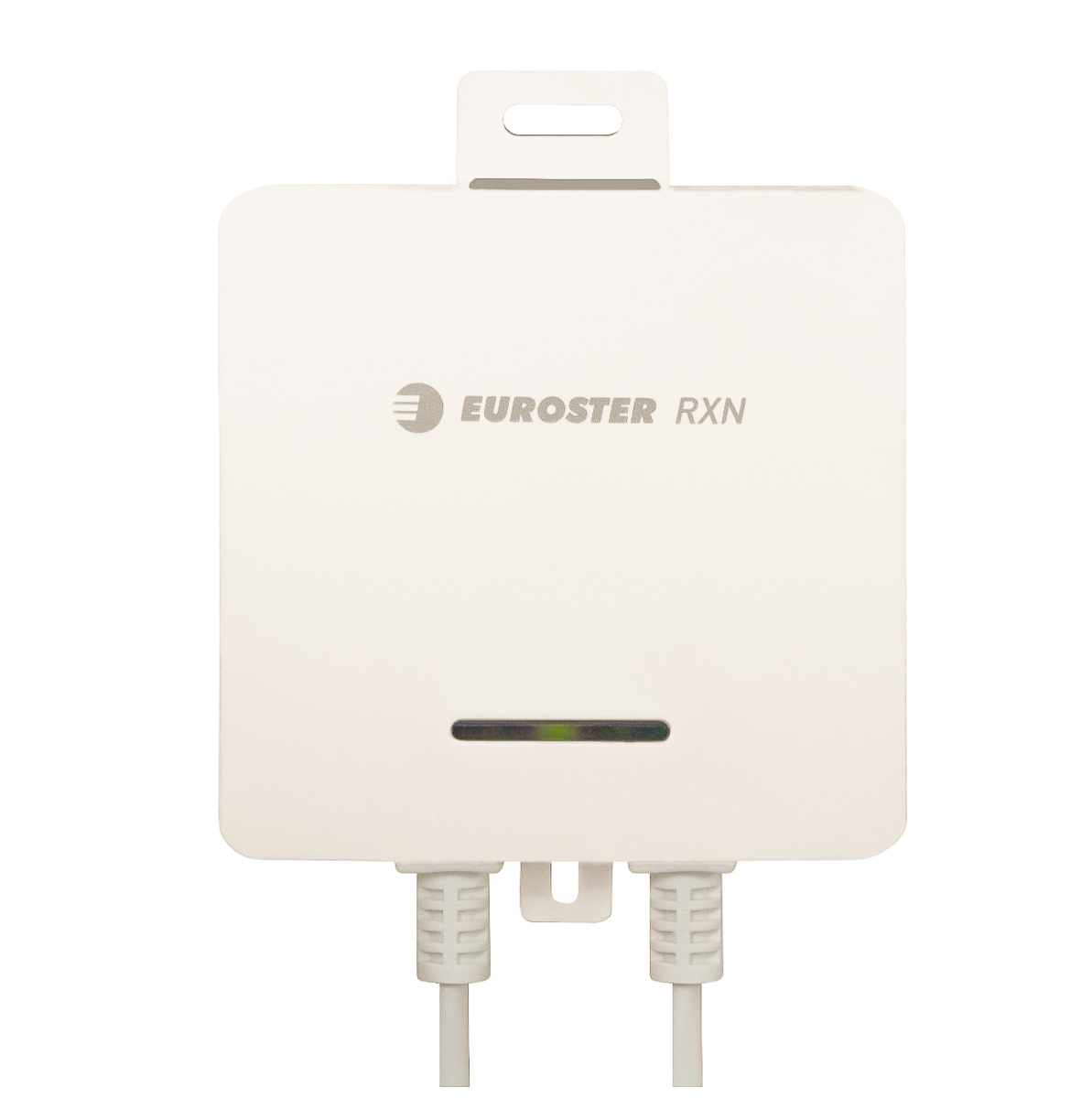

RXN receiver with a volt-free controlled output 5(3)A, wall-mounted installation

optional receiver

RX230

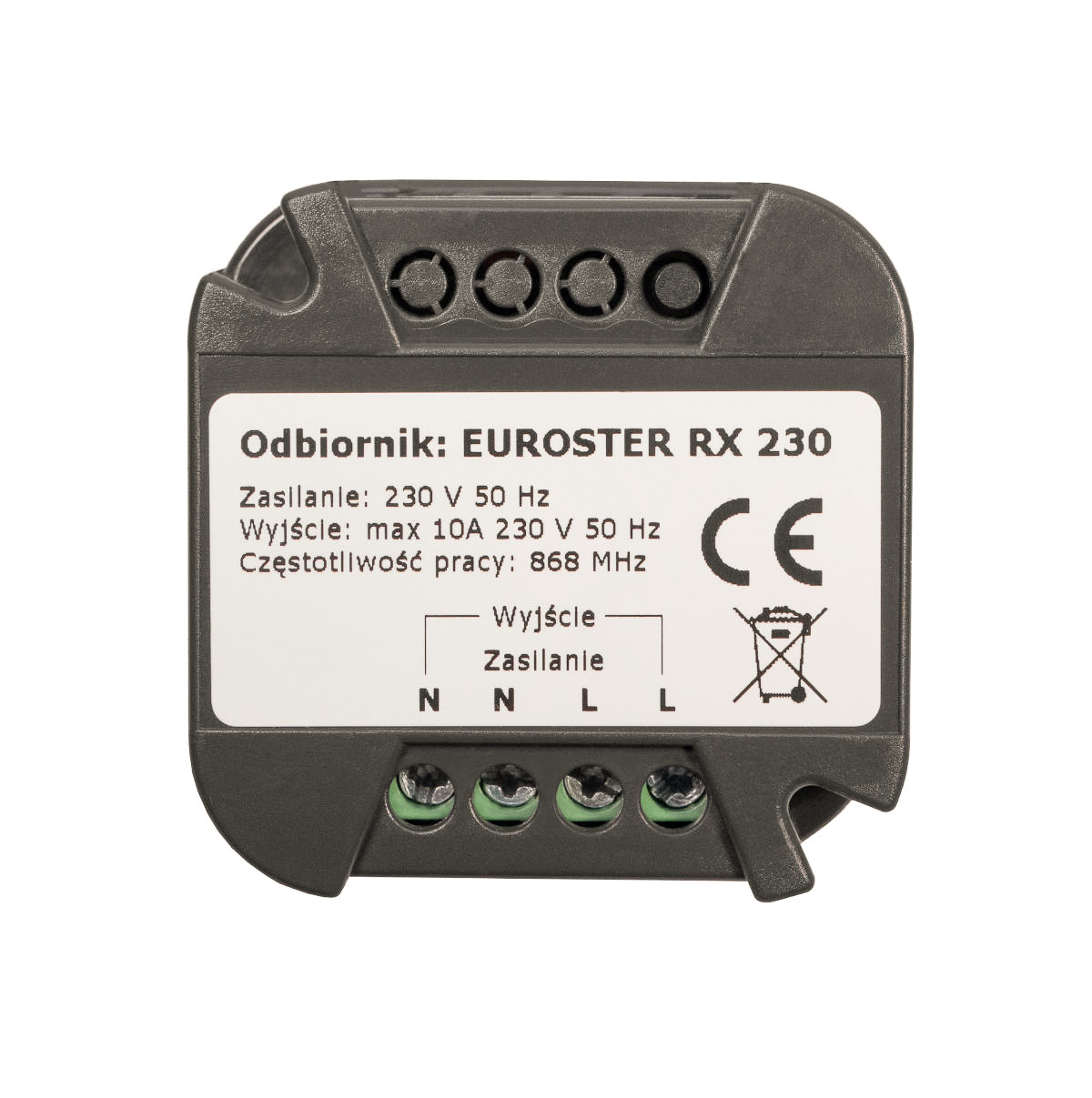

RX230 receiver with a controlled output 10A 230V 50Hz, installation in a Ø60 electrical wall box

Benefits

no need to run wires between the controller and the controlled device,
easy-to-use temperature controller enabling simple temperature control in residential and commercial spaces,
bidirectional communication ensures high reliability and resistance to interference,
ability to work with up to 6 Euroster RX receivers,
time-based reduction of the set temperature,
clear, backlit LCD display,
controller lock with any 3-digit code,
operation in one of three modes:
- room temperature control mode,
- floor temperature control mode,
- temperature control mode with floor temperature limitation,
simultaneous display of current and set temperatures,
adjustable hysteresis from 0.2°C to 10°C or PWM control,
temperature setting and reading accuracy of 0.1°C,
option to switch off the controller after the heating season,
low battery indication,
temperature calibration (correction),
surface-mounted design.

Technical specification

Controlled device	heating / air conditioning systems
Controller power supply	3 V – 2 AAA alkaline batteries
Receiver power supply	230 V 50 Hz
Maximum load	5 A 250 V 50 Hz
Controller output	relay, volt-free, SPST (normally open)
Temperature measurement range	0°C to +99°C
Temperature control range	+5°C to +35°C
Temperature control accuracy	0.1°C
Temperature display accuracy	0.1°C
Hysteresis range	0.2°C to 10°C in 0.1°C steps or PWM mode
Operating temperature	+5°C to +45°C
Storage temperature	0°C to +50°C
Protection rating	IP20
Color	white/grey

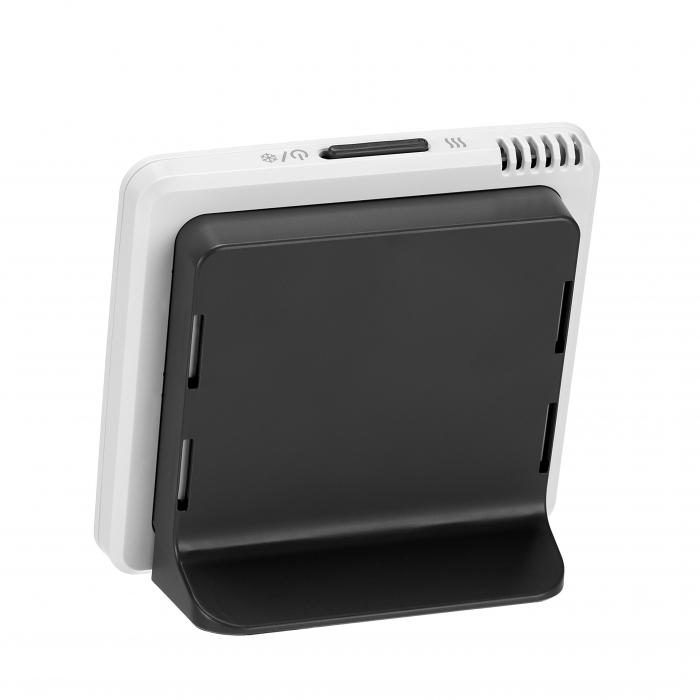

Controller mounting method	stand
Receiver mounting method	230 V 50 Hz socket
Controller weight (without batteries)	120 g
Receiver weight	170 g
Standards, approvals, certifications	compliant with RED, EMC, LVD and RoHS directives
Operating frequency	868 MHz
Maximum transmission power	<25 mW
Temperature controller class	IV
Contribution to energy efficiency	2% (PWM mode)
Warranty	2 years
Controller dimensions: W/H/D (mm)	102/97/26
Receiver dimensions: W/H/D (mm)	82

Catalog card

User manual
