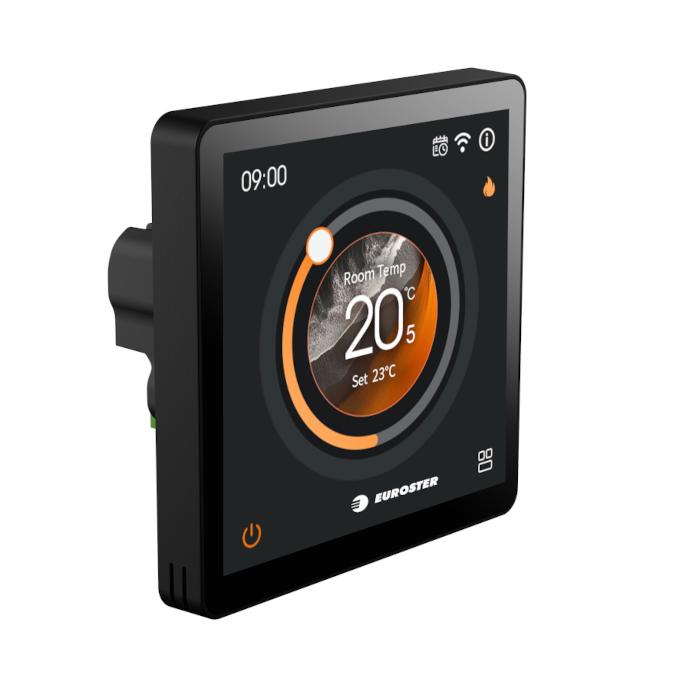

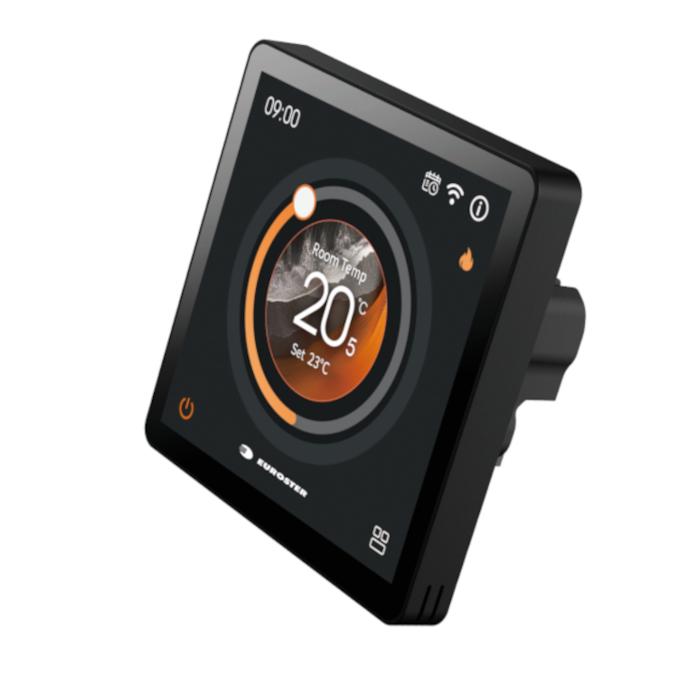

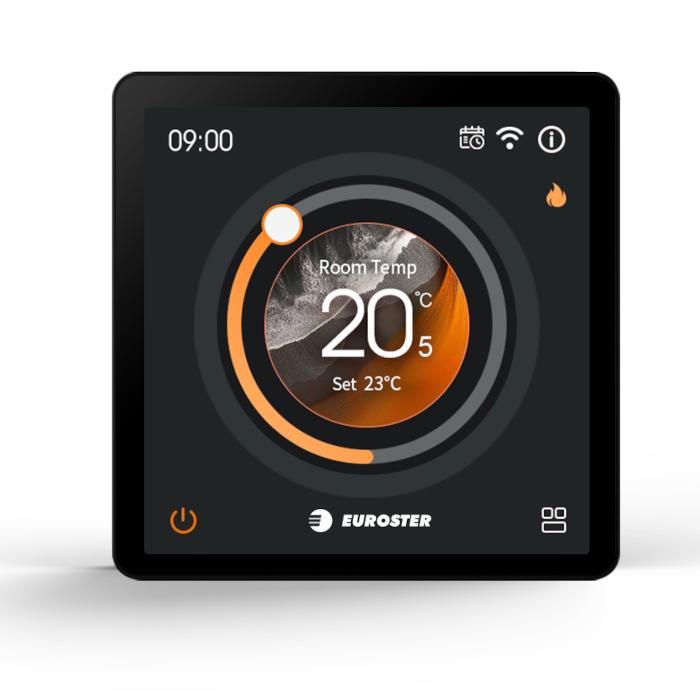

Euroster e2233 SMART 230V

‹ › ×

Euroster e2233 SMART 230V

The Euroster2233 SMART 230V temperature controller allows remote temperature management via an application.

Benefits

Technical specification

Documentation

The e2233 SMART 230V thermostat is an advanced, internet-based solution for intelligent temperature management that combines modern design, ease of use, and extensive configuration options. Ideal for flush-mounting in modern homes, apartments, and offices, the thermostat enables remote temperature management via the internet and ensures user-friendliness thanks to its intuitive interface and extensive programming options.

Control via dedicated mobile apps for iOS and Android
Remote access via a user-friendly app in Polish
Built-in Wi-Fi - no gateways required
Large, easy-to-read color touchscreen
Weekly programming - 6 temperature levels per day
The thermostat can be turned off after the heating season
A number of useful functions: temporary temperature setting, constant temperature, and holiday mode
Temperature reading correction
Power supply: 230 V 50-60 Hz
Flush-mounted, installation in a ϕ 60 junction box

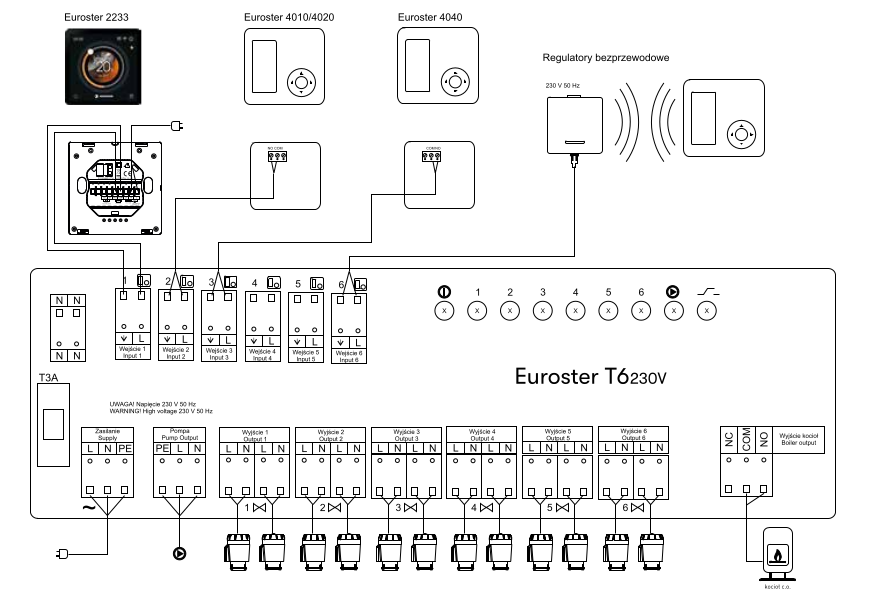

Connection diagram

Euroster 2233 - schemat podłączenia

Benefits

Control via dedicated mobile apps for iOS and Android,
Easy-to-use temperature controller for easy temperature control in residential and commercial spaces,
Easy-to-read 4-inch color display,
Programmable temperatures - 6 levels per day,
Temperature readings accurate to 0.1°C,
Possibility to turn off the controller after the heating season,
Temperature reading correction,
Flush-mounted design.

Technical specification

Controller supply voltage	230 V 50 Hz
Maximum load	3(2)A 230 V 50 Hz
Controller output	- relay, voltage-free, SPST - relay voltage output 230V
Temperature measurement range	from 0°C to +70°C
Temperature control range	from +5°C to +70°C
Temperature control accuracy	0.1°C
Temperature reading accuracy	0.1°C
Hysteresis range	from 0.2°C to 5°C in 0.2°C increments
WiFi parameters	2.4 Ghz 802.11 b/g/n
